MWAA 설치AWS/Airflow(AWS) 2023. 3. 28. 22:02
회사에서 AWS내 Airflow인 MWAA를 구축하며 정리한 내용입니다.
1. AWS CLI 자격 얻기
1-1) AWS CLI 설치 - 링크
- Command로 작업하도록 도와주는 역할
$ curl "https://awscli.amazonaws.com/AWSCLIV2.pkg" -o "AWSCLIV2.pkg" $ sudo softwareupdate --install-rosetta $ sudo installer -pkg AWSCLIV2.pkg -target / # 제대로 동작하는지 체크 $ which aws $ aws --version > aws-cli/2.8.5 Python/3.9.11 Darwin/21.6.0 exe/x86_64 prompt/off1-2) Certification 설정 - 링크

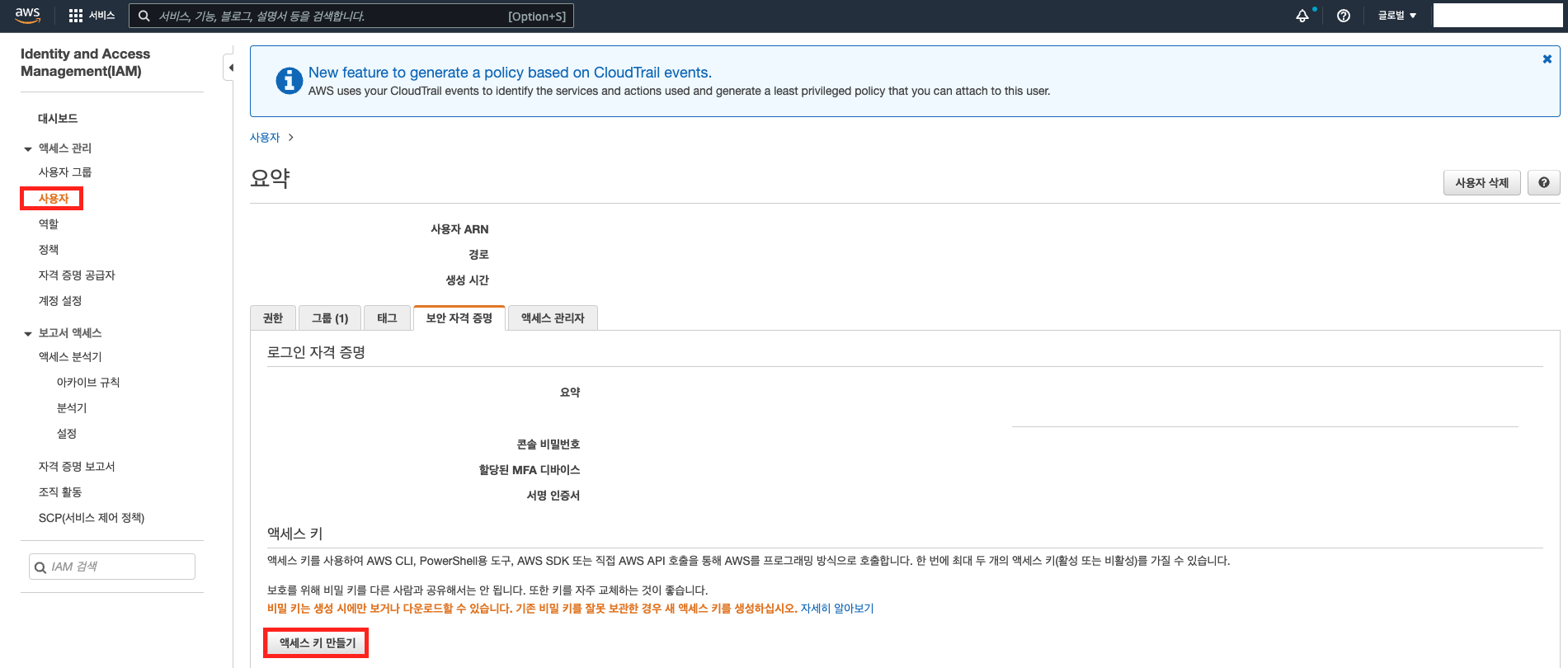

- aws 사용자 계정에서 본인의 계정의 Certification ( access_key_id , access_key ) 다운로드
- CLI 아래와 같이 설정
$ aws configure AWS Access Key ID [None]: id AWS Secret Access Key [None]: key Default region name [None]: ap-northeast-2 Default output format [None]: json
2. MWAA 설치
2-1) download or save mwaa-environment-public-network.yml - 링크
- Create Enviornment MWAA
- ${AWS::Region}
- aws/config region
- ${AWS::AccountId}
- Aws 계정 ID
- ${AWS::StackName}
- command 시 stack-name 값
- 알파벳으로 시작하여야 한다.
- ${AWS::Region}
- 필요에 따라 VPC,CIDR,Subnet,Gateway 값을 변경하여 사용한다.
AWSTemplateFormatVersion: "2010-09-09" Parameters: EnvironmentName: # 모든 이름 앞에 붙여서 사용할 값 Description: An environment name that is prefixed to resource names Type: String Default: MWAAEnvironment # Network Setting VpcCIDR: Description: The IP range (CIDR notation) for this VPC Type: String Default: 10.192.0.0/16 PublicSubnet1CIDR: Description: The IP range (CIDR notation) for the public subnet in the first Availability Zone Type: String Default: 10.192.10.0/24 PublicSubnet2CIDR: Description: The IP range (CIDR notation) for the public subnet in the second Availability Zone Type: String Default: 10.192.11.0/24 PrivateSubnet1CIDR: Description: The IP range (CIDR notation) for the private subnet in the first Availability Zone Type: String Default: 10.192.20.0/24 PrivateSubnet2CIDR: Description: The IP range (CIDR notation) for the private subnet in the second Availability Zone Type: String Default: 10.192.21.0/24 # 최대 worker 수 MaxWorkerNodes: Description: The maximum number of workers that can run in the environment Type: Number Default: 2 # Log 구성 DagProcessingLogs: Description: Log level for DagProcessing Type: String Default: INFO SchedulerLogsLevel: Description: Log level for SchedulerLogs Type: String Default: INFO TaskLogsLevel: Description: Log level for TaskLogs Type: String Default: INFO WorkerLogsLevel: Description: Log level for WorkerLogs Type: String Default: INFO WebserverLogsLevel: Description: Log level for WebserverLogs Type: String Default: INFO Resources: ##################################################################################################################### # CREATE VPC ##################################################################################################################### VPC: Type: AWS::EC2::VPC Properties: CidrBlock: !Ref VpcCIDR EnableDnsSupport: true EnableDnsHostnames: true Tags: - Key: Name # vpc에서 보이는 이름 설정 값 Value: MWAAEnvironment InternetGateway: Type: AWS::EC2::InternetGateway Properties: Tags: - Key: Name # 인터넷 게이트웨이에 보이는 이름 설정 값 Value: MWAAEnvironment InternetGatewayAttachment: Type: AWS::EC2::VPCGatewayAttachment Properties: InternetGatewayId: !Ref InternetGateway VpcId: !Ref VPC PublicSubnet1: Type: AWS::EC2::Subnet Properties: VpcId: !Ref VPC AvailabilityZone: !Select [ 0, !GetAZs '' ] CidrBlock: !Ref PublicSubnet1CIDR MapPublicIpOnLaunch: true Tags: - Key: Name # Subnet 이름 Value: !Sub ${EnvironmentName} Public Subnet (AZ1) PublicSubnet2: Type: AWS::EC2::Subnet Properties: VpcId: !Ref VPC AvailabilityZone: !Select [ 1, !GetAZs '' ] CidrBlock: !Ref PublicSubnet2CIDR MapPublicIpOnLaunch: true Tags: - Key: Name # Subnet 이름 Value: !Sub ${EnvironmentName} Public Subnet (AZ2) PrivateSubnet1: Type: AWS::EC2::Subnet Properties: VpcId: !Ref VPC AvailabilityZone: !Select [ 0, !GetAZs '' ] CidrBlock: !Ref PrivateSubnet1CIDR MapPublicIpOnLaunch: false Tags: - Key: Name # Subnet 이름 Value: !Sub ${EnvironmentName} Private Subnet (AZ1) PrivateSubnet2: Type: AWS::EC2::Subnet Properties: VpcId: !Ref VPC AvailabilityZone: !Select [ 1, !GetAZs '' ] CidrBlock: !Ref PrivateSubnet2CIDR MapPublicIpOnLaunch: false Tags: - Key: Name # Subnet 이름 Value: !Sub ${EnvironmentName} Private Subnet (AZ2) NatGateway1EIP: Type: AWS::EC2::EIP DependsOn: InternetGatewayAttachment Properties: Domain: vpc NatGateway2EIP: Type: AWS::EC2::EIP DependsOn: InternetGatewayAttachment Properties: Domain: vpc NatGateway1: Type: AWS::EC2::NatGateway Properties: AllocationId: !GetAtt NatGateway1EIP.AllocationId SubnetId: !Ref PublicSubnet1 NatGateway2: Type: AWS::EC2::NatGateway Properties: AllocationId: !GetAtt NatGateway2EIP.AllocationId SubnetId: !Ref PublicSubnet2 PublicRouteTable: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref VPC Tags: - Key: Name # Route Table Name Value: !Sub ${EnvironmentName} Public Routes DefaultPublicRoute: Type: AWS::EC2::Route DependsOn: InternetGatewayAttachment Properties: RouteTableId: !Ref PublicRouteTable DestinationCidrBlock: 0.0.0.0/0 GatewayId: !Ref InternetGateway PublicSubnet1RouteTableAssociation: Type: AWS::EC2::SubnetRouteTableAssociation Properties: RouteTableId: !Ref PublicRouteTable SubnetId: !Ref PublicSubnet1 PublicSubnet2RouteTableAssociation: Type: AWS::EC2::SubnetRouteTableAssociation Properties: RouteTableId: !Ref PublicRouteTable SubnetId: !Ref PublicSubnet2 PrivateRouteTable1: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref VPC Tags: - Key: Name # Route Table Name Value: !Sub ${EnvironmentName} Private Routes (AZ1) DefaultPrivateRoute1: Type: AWS::EC2::Route Properties: RouteTableId: !Ref PrivateRouteTable1 DestinationCidrBlock: 0.0.0.0/0 NatGatewayId: !Ref NatGateway1 PrivateSubnet1RouteTableAssociation: Type: AWS::EC2::SubnetRouteTableAssociation Properties: RouteTableId: !Ref PrivateRouteTable1 SubnetId: !Ref PrivateSubnet1 PrivateRouteTable2: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref VPC Tags: - Key: Name # Route Table Name Value: !Sub ${EnvironmentName} Private Routes (AZ2) DefaultPrivateRoute2: Type: AWS::EC2::Route Properties: RouteTableId: !Ref PrivateRouteTable2 DestinationCidrBlock: 0.0.0.0/0 NatGatewayId: !Ref NatGateway2 PrivateSubnet2RouteTableAssociation: Type: AWS::EC2::SubnetRouteTableAssociation Properties: RouteTableId: !Ref PrivateRouteTable2 SubnetId: !Ref PrivateSubnet2 SecurityGroup: Type: AWS::EC2::SecurityGroup Properties: GroupName: "mwaa-security-group" GroupDescription: "Security group with a self-referencing inbound rule." VpcId: !Ref VPC SecurityGroupIngress: Type: AWS::EC2::SecurityGroupIngress Properties: GroupId: !Ref SecurityGroup IpProtocol: "-1" SourceSecurityGroupId: !Ref SecurityGroup EnvironmentBucket: Type: AWS::S3::Bucket Properties: VersioningConfiguration: Status: Enabled PublicAccessBlockConfiguration: BlockPublicAcls: true BlockPublicPolicy: true IgnorePublicAcls: true RestrictPublicBuckets: true ##################################################################################################################### # CREATE MWAA ##################################################################################################################### MwaaEnvironment: Type: AWS::MWAA::Environment DependsOn: MwaaExecutionPolicy Properties: # ${AWS::Region} = aws/config region # ${AWS::AccountId} = ?? # {AWS::StackName} = command 시 stack-name 값 # 알파벳으로 시작하여야 한다. Name: !Sub "${AWS::StackName}-MwaaEnvironment" SourceBucketArn: !GetAtt EnvironmentBucket.Arn ExecutionRoleArn: !GetAtt MwaaExecutionRole.Arn DagS3Path: dags NetworkConfiguration: SecurityGroupIds: - !GetAtt SecurityGroup.GroupId SubnetIds: - !Ref PrivateSubnet1 - !Ref PrivateSubnet2 WebserverAccessMode: PUBLIC_ONLY MaxWorkers: !Ref MaxWorkerNodes LoggingConfiguration: DagProcessingLogs: LogLevel: !Ref DagProcessingLogs Enabled: true SchedulerLogs: LogLevel: !Ref SchedulerLogsLevel Enabled: true TaskLogs: LogLevel: !Ref TaskLogsLevel Enabled: true WorkerLogs: LogLevel: !Ref WorkerLogsLevel Enabled: true WebserverLogs: LogLevel: !Ref WebserverLogsLevel Enabled: true SecurityGroup: Type: AWS::EC2::SecurityGroup Properties: VpcId: !Ref VPC GroupDescription: !Sub "Security Group for Amazon MWAA Environment ${AWS::StackName}-MwaaEnvironment" GroupName: !Sub "airflow-security-group-${AWS::StackName}-MwaaEnvironment" SecurityGroupIngress: Type: AWS::EC2::SecurityGroupIngress Properties: GroupId: !Ref SecurityGroup IpProtocol: "-1" SourceSecurityGroupId: !Ref SecurityGroup SecurityGroupEgress: Type: AWS::EC2::SecurityGroupEgress Properties: GroupId: !Ref SecurityGroup IpProtocol: "-1" CidrIp: "0.0.0.0/0" MwaaExecutionRole: Type: AWS::IAM::Role Properties: AssumeRolePolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Principal: Service: - airflow-env.amazonaws.com - airflow.amazonaws.com Action: - "sts:AssumeRole" Path: "/service-role/" MwaaExecutionPolicy: DependsOn: EnvironmentBucket Type: AWS::IAM::ManagedPolicy Properties: Roles: - !Ref MwaaExecutionRole PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: airflow:PublishMetrics Resource: - !Sub "arn:aws:airflow:${AWS::Region}:${AWS::AccountId}:environment/${EnvironmentName}" - Effect: Deny Action: s3:ListAllMyBuckets Resource: - !Sub "${EnvironmentBucket.Arn}" - !Sub "${EnvironmentBucket.Arn}/*" - Effect: Allow Action: - "s3:GetObject*" - "s3:GetBucket*" - "s3:List*" Resource: - !Sub "${EnvironmentBucket.Arn}" - !Sub "${EnvironmentBucket.Arn}/*" - Effect: Allow Action: - logs:DescribeLogGroups Resource: "*" - Effect: Allow Action: - logs:CreateLogStream - logs:CreateLogGroup - logs:PutLogEvents - logs:GetLogEvents - logs:GetLogRecord - logs:GetLogGroupFields - logs:GetQueryResults - logs:DescribeLogGroups Resource: - !Sub "arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:airflow-${AWS::StackName}*" - Effect: Allow Action: cloudwatch:PutMetricData Resource: "*" - Effect: Allow Action: - sqs:ChangeMessageVisibility - sqs:DeleteMessage - sqs:GetQueueAttributes - sqs:GetQueueUrl - sqs:ReceiveMessage - sqs:SendMessage Resource: - !Sub "arn:aws:sqs:${AWS::Region}:*:airflow-celery-*" - Effect: Allow Action: - kms:Decrypt - kms:DescribeKey - "kms:GenerateDataKey*" - kms:Encrypt NotResource: !Sub "arn:aws:kms:*:${AWS::AccountId}:key/*" Condition: StringLike: "kms:ViaService": - !Sub "sqs.${AWS::Region}.amazonaws.com" Outputs: VPC: Description: A reference to the created VPC Value: !Ref VPC PublicSubnets: Description: A list of the public subnets Value: !Join [ ",", [ !Ref PublicSubnet1, !Ref PublicSubnet2 ]] PrivateSubnets: Description: A list of the private subnets Value: !Join [ ",", [ !Ref PrivateSubnet1, !Ref PrivateSubnet2 ]] PublicSubnet1: Description: A reference to the public subnet in the 1st Availability Zone Value: !Ref PublicSubnet1 PublicSubnet2: Description: A reference to the public subnet in the 2nd Availability Zone Value: !Ref PublicSubnet2 PrivateSubnet1: Description: A reference to the private subnet in the 1st Availability Zone Value: !Ref PrivateSubnet1 PrivateSubnet2: Description: A reference to the private subnet in the 2nd Availability Zone Value: !Ref PrivateSubnet2 SecurityGroupIngress: Description: Security group with self-referencing inbound rule Value: !Ref SecurityGroupIngress MwaaApacheAirflowUI: Description: MWAA Environment Value: !Sub "https://${MwaaEnvironment.WebserverUrl}"2-2) Create Stack with AWS CLI
- file:// 은 필수 값
- download file split data =
-이지만 코드 명령어는_
$ cd file # move yml file $ aws cloudformation create-stack --stack-name mwaa-environment --template-body file://mwaa_public_network.yml --capabilities CAPABILITY_IAM2-3) 결과
- 아래와 같이 설치된 것을 볼 수 있습니다.
